FAG 21313-E1-XL
Spherical Roller Bearings
Spherical roller bearings 213..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

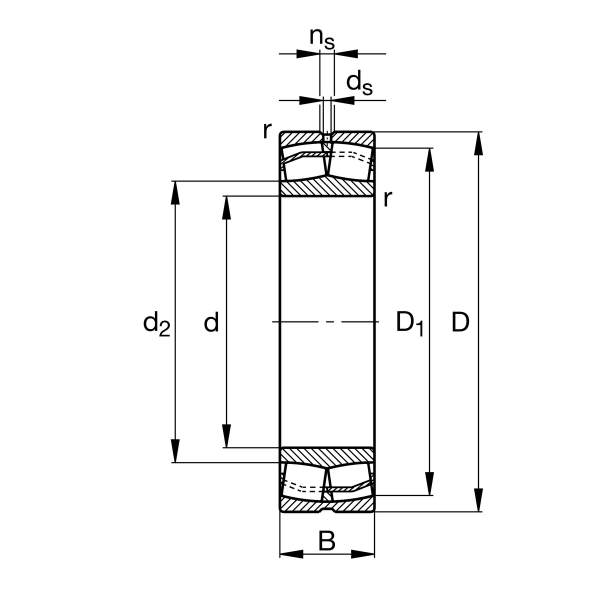

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
140 mm
Outside diameter
B
33 mm
Width
Cr
250,000 N
Basic dynamic load rating, radial
C0r
270,000 N
Basic static load rating, radial
Cur
34,500 N
Fatigue load limit, radial
CG
6,200 1/min
Limiting speed
nϑr
3,600 1/min
Reference speed
≈m
2.501 kg
Weight
Mounting dimensions
da min
77 mm
Minimum diameter shaft shoulder
Da max
128 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
