FAG 21315-E1-XL-K-TVPB-C3
Spherical roller bearings 213..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

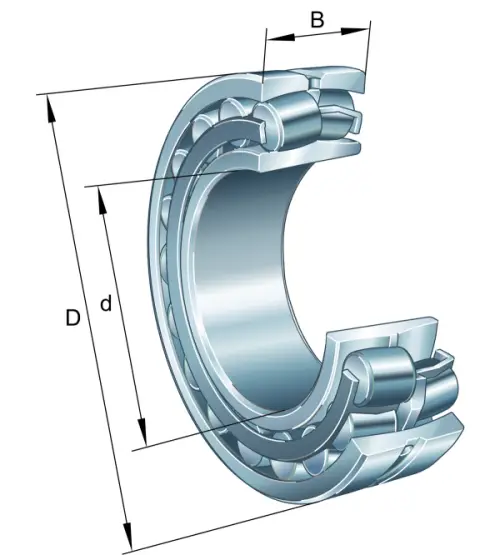

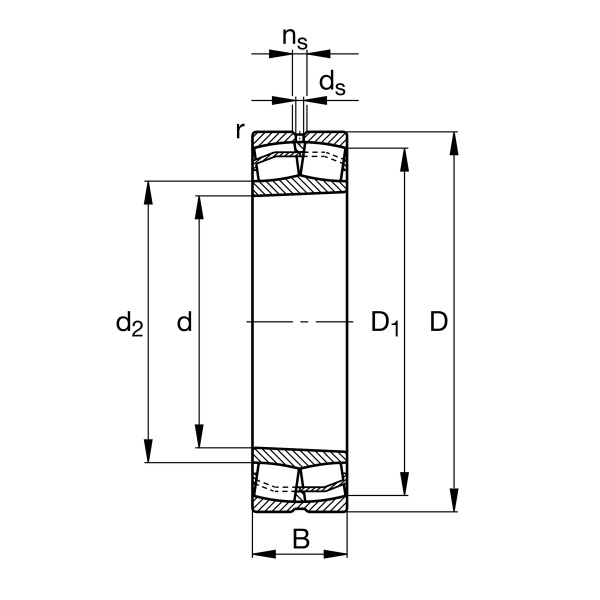

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
160 mm
Outside diameter
B
37 mm
Width
Cr
305,000 N
Basic dynamic load rating, radial
C0r
325,000 N
Basic static load rating, radial
Cur
39,000 N
Fatigue load limit, radial
CG
5,700 1/min
Limiting speed
nϑr
3,750 1/min
Reference speed
≈m
3.509 kg
Weight
Mounting dimensions
da min
87 mm
Minimum diameter shaft shoulder
Da max
148 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
Ba min
5 mm
Minimum cavity width of the sleeve
da max
99 mm
Maximum diameter of shaft shoulder
db min
80 mm
Minimum cavity diameter of the sleeve
