FAG 21315-E1-XL
Spherical Roller Bearings
Spherical roller bearings 213..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

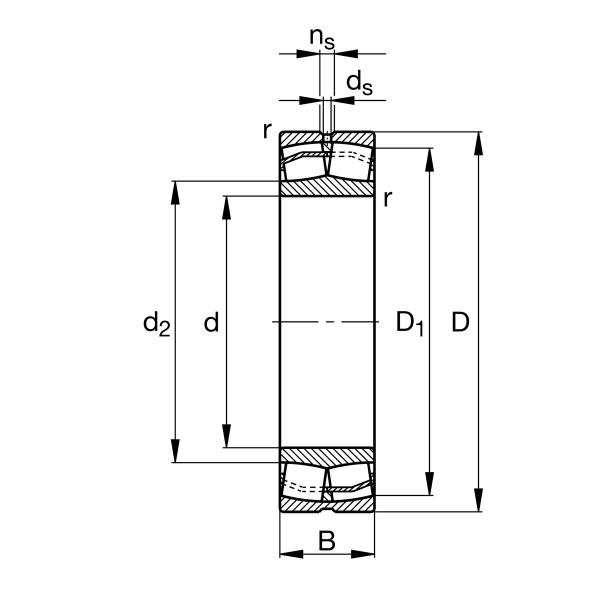

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
160 mm
Outside diameter
B
37 mm
Width
Cr
305,000 N
Basic dynamic load rating, radial
C0r
325,000 N
Basic static load rating, radial
Cur
39,000 N
Fatigue load limit, radial
CG
5,700 1/min
Limiting speed
nϑr
3,750 1/min
Reference speed
≈m
3.691 kg
Weight
Mounting dimensions
da min
87 mm
Minimum diameter shaft shoulder
Da max
148 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
