FAG 21319-E1-XL-K-TVPB

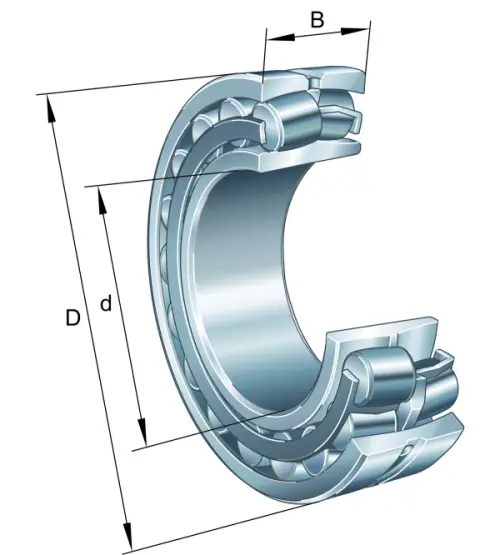

Spherical roller bearings 213..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

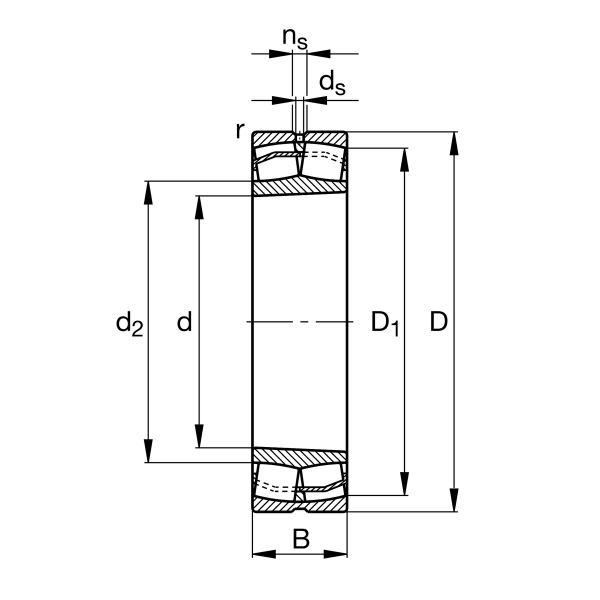

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
45 mm
Width
Cr
425,000 N
Basic dynamic load rating, radial
C0r
450,000 N
Basic static load rating, radial
Cur
48,500 N
Fatigue load limit, radial
CG
4,600 1/min
Limiting speed
nϑr
3,250 1/min
Reference speed
≈m
6.414 kg
Weight

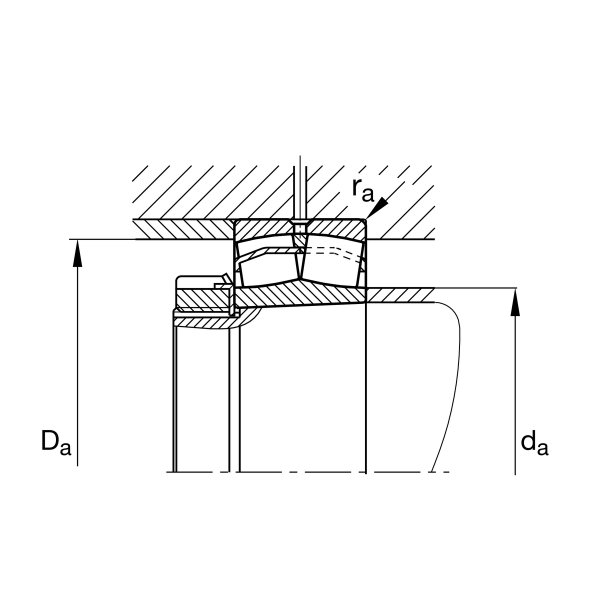

Mounting dimensions
da min
109 mm
Minimum diameter shaft shoulder
Da max
186 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
Ba min
7 mm
Minimum cavity width of the sleeve
da max
124 mm
Maximum diameter of shaft shoulder
db min
102 mm
Minimum cavity diameter of the sleeve
