FAG 21320-E1-XL-K-TVPB-C3
Spherical roller bearings 213..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

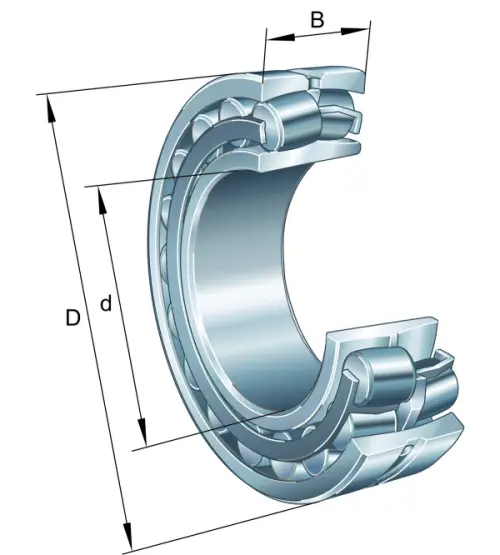

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
215 mm
Outside diameter
B
47 mm
Width
Cr
495,000 N
Basic dynamic load rating, radial
C0r
530,000 N
Basic static load rating, radial
Cur
62,000 N
Fatigue load limit, radial
CG
4,400 1/min
Limiting speed
nϑr
3,050 1/min
Reference speed
≈m
7.937 kg
Weight
Mounting dimensions
da min
114 mm
Minimum diameter shaft shoulder
Da max
201 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
Ba min
7 mm
Minimum cavity width of the sleeve
da max
131 mm
Maximum diameter of shaft shoulder
db min
108 mm
Minimum cavity diameter of the sleeve
