FAG 22206-E1-XL

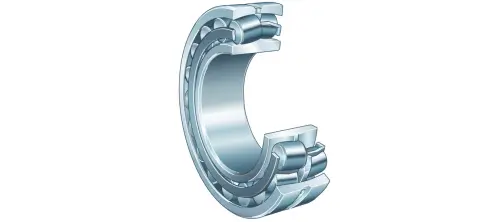

Spherical Roller Bearings
Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
62 mm
Outside diameter
B
20 mm
Width
Cr
64,000 N
Basic dynamic load rating, radial
C0r
57,000 N
Basic static load rating, radial
Cur
7,000 N
Fatigue load limit, radial
CG
12,500 1/min
Limiting speed
nϑr
7,800 1/min
Reference speed
≈m
0.277 kg
Weight
Mounting dimensions
da min
35.6 mm
Minimum diameter shaft shoulder
Da max
56.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
