FAG 22207-E1-XL-H40
Spherical roller bearing 222..-E1-XL-H40, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

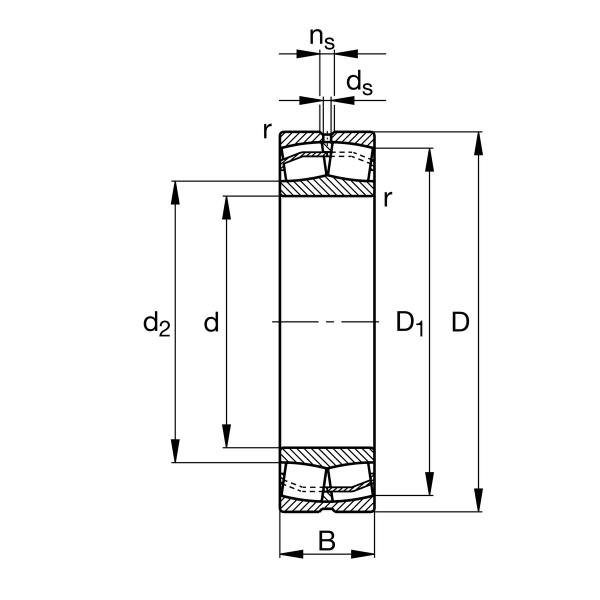

Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
72 mm
Outside diameter
B
23 mm
Width
Cr
89,000 N
Basic dynamic load rating, radial
C0r
81,000 N
Basic static load rating, radial
Cur
9,700 N
Fatigue load limit, radial
CG
10,700 1/min
Limiting speed
nϑr
7,000 1/min
Reference speed
≈m
0.431 kg
Weight
Mounting dimensions
da min
42 mm
Minimum diameter shaft shoulder
Da max
65 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
