FAG 22209-E1-XL-K>A
Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

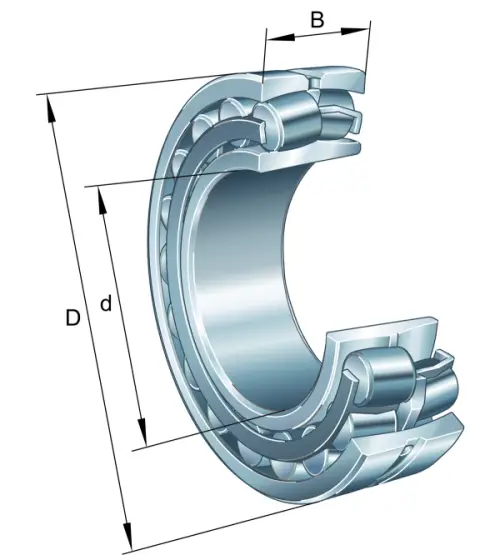

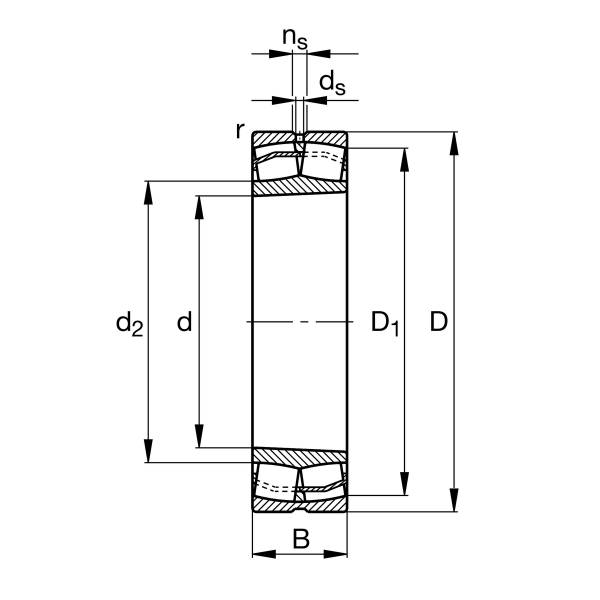

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
23 mm
Width
Cr
104,000 N
Basic dynamic load rating, radial
C0r
99,000 N
Basic static load rating, radial
Cur
13,000 N
Fatigue load limit, radial
CG
10,100 1/min
Limiting speed
nϑr
5,600 1/min
Reference speed
≈m
0.548 kg
Weight
Mounting dimensions
da min
52 mm
Minimum diameter shaft shoulder
da max
54 mm
Maximum diameter of shaft shoulder
Da max
78 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
db min
50 mm
Minimum cavity diameter of the sleeve
Ba min
8 mm
Minimum cavity width of the sleeve
