FAG 22210-E1-XL>A

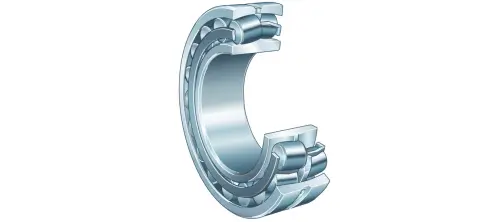

Spherical Roller Bearings
Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
23 mm
Width
Cr
109,000 N
Basic dynamic load rating, radial
C0r
107,000 N
Basic static load rating, radial
Cur
14,600 N
Fatigue load limit, radial
CG
9,800 1/min
Limiting speed
nϑr
5,100 1/min
Reference speed
≈m
0.597 kg
Weight
Mounting dimensions
da min
57 mm
Minimum diameter shaft shoulder
Da max
83 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
