FAG 22211-E1-XL>A

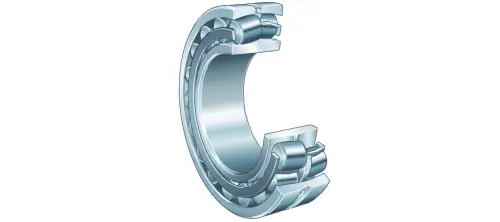

Spherical Roller Bearings
Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

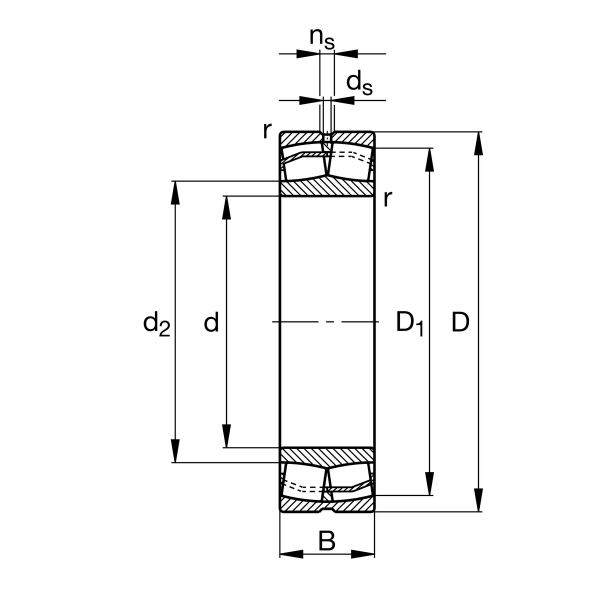

Main Dimensions & Performance Data
d
55 mm
Bore diameter
D
100 mm
Outside diameter
B
25 mm
Width
Cr
129,000 N
Basic dynamic load rating, radial
C0r
130,000 N
Basic static load rating, radial
Cur
17,700 N
Fatigue load limit, radial
CG
9,000 1/min
Limiting speed
nϑr
4,650 1/min
Reference speed
≈m
0.82 kg
Weight
Mounting dimensions
da min
64 mm
Minimum diameter shaft shoulder
Da max
91 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
