FAG 22215-E1-XL-K>A
Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

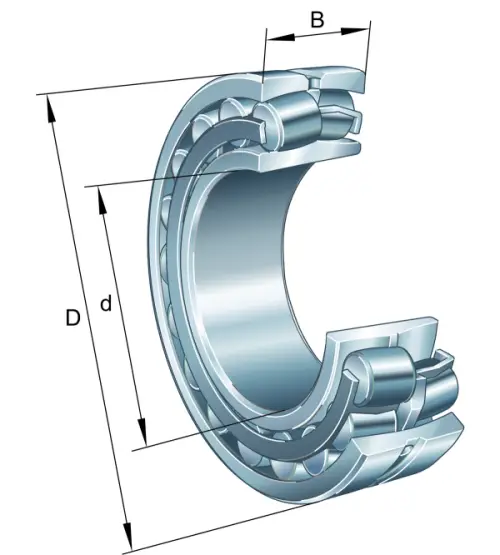

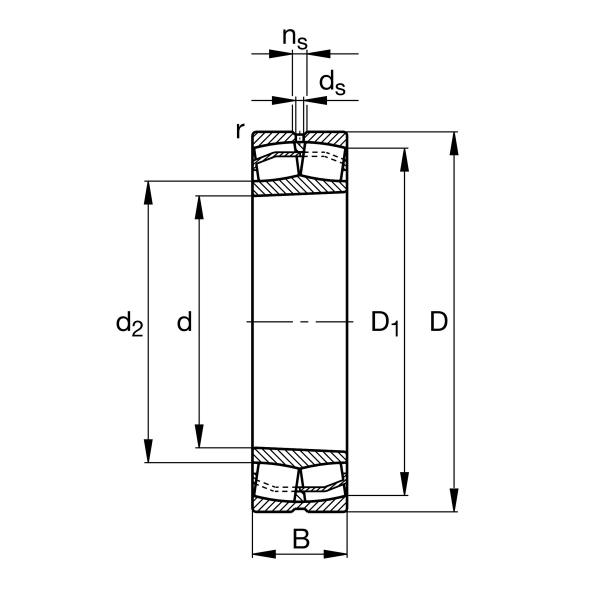

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
130 mm
Outside diameter
B
31 mm
Width
Cr
216,000 N
Basic dynamic load rating, radial
C0r
237,000 N
Basic static load rating, radial
Cur
30,500 N
Fatigue load limit, radial
CG
6,500 1/min
Limiting speed
nϑr
3,700 1/min
Reference speed
≈m
1.642 kg
Weight
Mounting dimensions
da min
84 mm
Minimum diameter shaft shoulder
da max
89 mm
Maximum diameter of shaft shoulder
Da max
121 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
db min
80 mm
Minimum cavity diameter of the sleeve
Ba min
12 mm
Minimum cavity width of the sleeve
