FAG 22217-E1-XL-K
Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

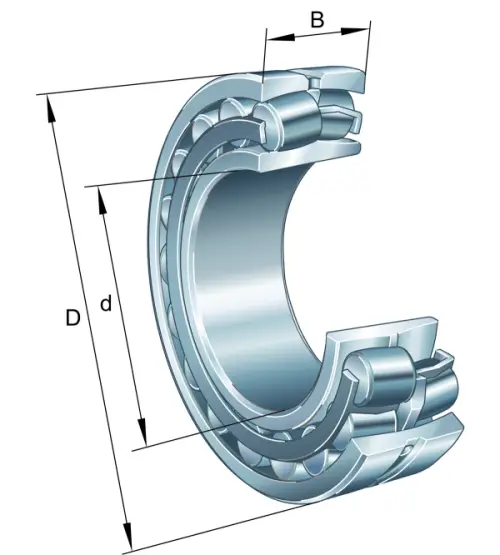

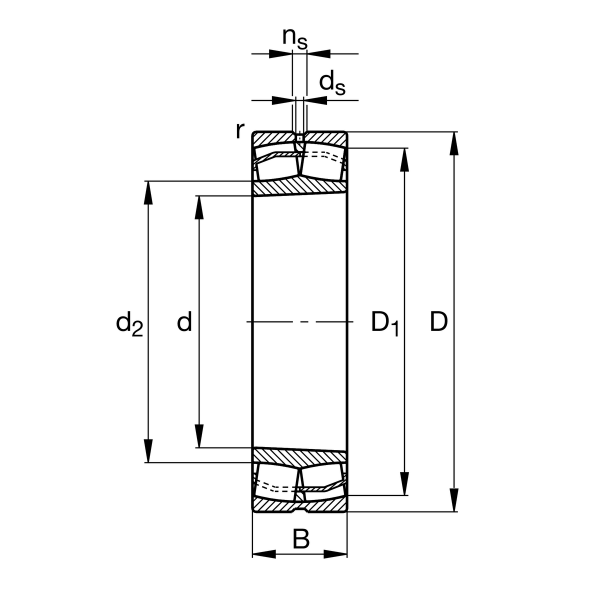

Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
150 mm
Outside diameter
B
36 mm
Width
Cr
305,000 N
Basic dynamic load rating, radial
C0r
325,000 N
Basic static load rating, radial
Cur
39,000 N
Fatigue load limit, radial
CG
5,700 1/min
Limiting speed
nϑr
3,450 1/min
Reference speed
≈m
2.56 kg
Weight
Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
da max
99 mm
Maximum diameter of shaft shoulder
Da max
139 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
db min
91 mm
Minimum cavity diameter of the sleeve
Ba min
12 mm
Minimum cavity width of the sleeve
