FAG 22218-E1A-XL-M-C2
Spherical roller bearing 222..-E1A-XL-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

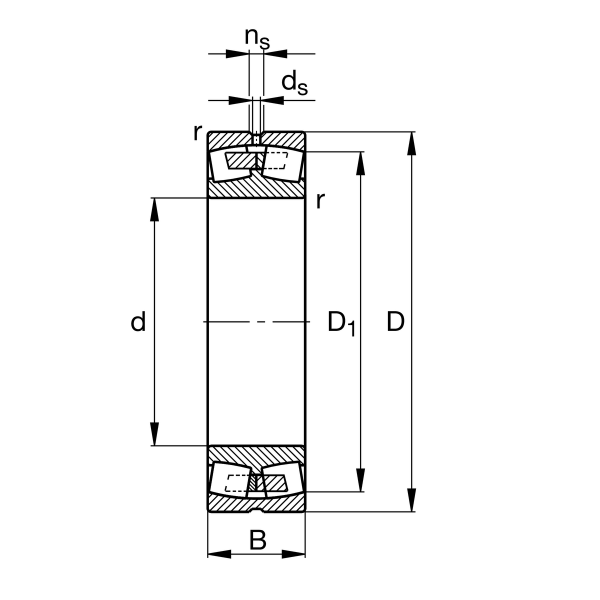

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
40 mm
Width
Cr
345,000 N
Basic dynamic load rating, radial
C0r
375,000 N
Basic static load rating, radial
Cur
43,500 N
Fatigue load limit, radial
CG
5,200 1/min
Limiting speed
nϑr
3,400 1/min
Reference speed
≈m
3.335 kg
Weight
Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
Da max
149 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
