FAG 22219-E1-XL-K-C4
Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

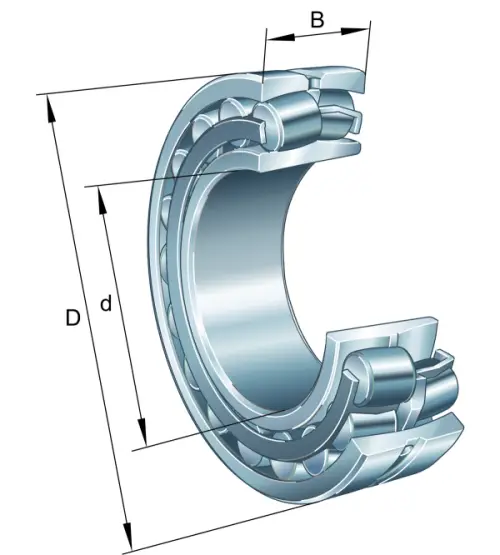

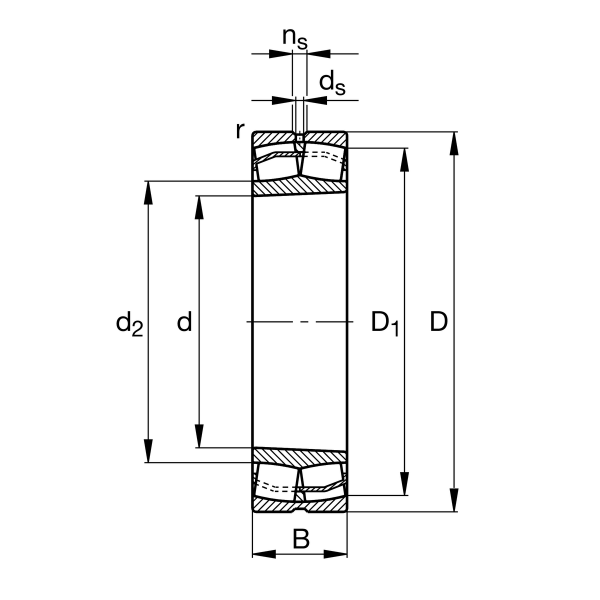

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
170 mm
Outside diameter
B
43 mm
Width
Cr
380,000 N
Basic dynamic load rating, radial
C0r
415,000 N
Basic static load rating, radial
Cur
48,000 N
Fatigue load limit, radial
CG
4,850 1/min
Limiting speed
nϑr
3,300 1/min
Reference speed
≈m
3.957 kg
Weight
Mounting dimensions
da min
107 mm
Minimum diameter shaft shoulder
da max
112 mm
Maximum diameter of shaft shoulder
Da max
158 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
db min
102 mm
Minimum cavity diameter of the sleeve
Ba min
9 mm
Minimum cavity width of the sleeve
