FAG 22219-E1-XL>A

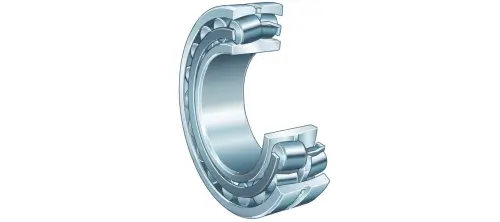

Spherical Roller Bearings
Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
170 mm
Outside diameter
B
43 mm
Width
Cr
380,000 N
Basic dynamic load rating, radial
C0r
415,000 N
Basic static load rating, radial
Cur
48,500 N
Fatigue load limit, radial
CG
4,850 1/min
Limiting speed
nϑr
3,300 1/min
Reference speed
≈m
4.066 kg
Weight
Mounting dimensions
da min
107 mm
Minimum diameter shaft shoulder
Da max
158 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
