FAG 22220-E1-XL

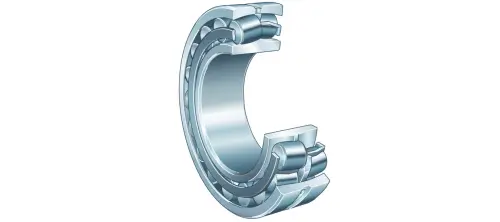

Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
180 mm
Outside diameter
B
46 mm
Width
Cr
430,000 N
Basic dynamic load rating, radial
C0r
475,000 N
Basic static load rating, radial
Cur
53,000 N
Fatigue load limit, radial
CG
4,550 1/min
Limiting speed
nϑr
3,150 1/min
Reference speed
≈m
4.962 kg
Weight
Mounting dimensions
da min
112 mm
Minimum diameter shaft shoulder
Da max
168 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
