FAG 22226-E1-XL>A

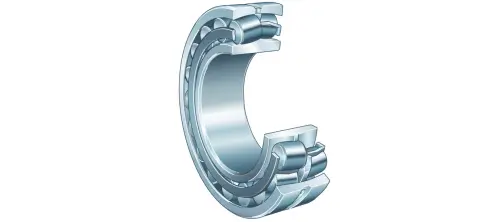

Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
230 mm
Outside diameter
B
64 mm
Width
Cr
760,000 N
Basic dynamic load rating, radial
C0r
890,000 N
Basic static load rating, radial
Cur
81,000 N
Fatigue load limit, radial
CG
3,350 1/min
Limiting speed
nϑr
2,500 1/min
Reference speed
≈m
11.03 kg
Weight
Mounting dimensions
da min
144 mm
Minimum diameter shaft shoulder
Da max
216 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
