FAG 22228-E1-XL

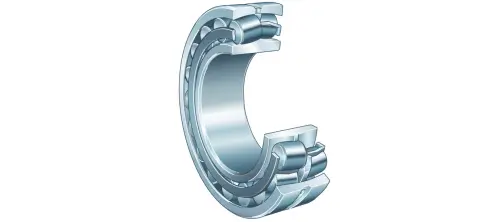

Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
250 mm
Outside diameter
B
68 mm
Width
Cr
870,000 N
Basic dynamic load rating, radial
C0r
1,040,000 N
Basic static load rating, radial
Cur
100,000 N
Fatigue load limit, radial
CG
3,150 1/min
Limiting speed
nϑr
2,250 1/min
Reference speed
≈m
14.004 kg
Weight
Mounting dimensions
da min
154 mm
Minimum diameter shaft shoulder
Da max
236 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
