FAG 22232-E1-XL>A

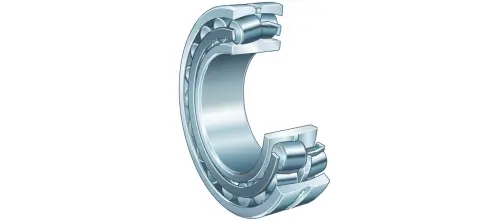

Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
290 mm
Outside diameter
B
80 mm
Width
Cr
1,150,000 N
Basic dynamic load rating, radial
C0r
1,400,000 N
Basic static load rating, radial
Cur
129,000 N
Fatigue load limit, radial
CG
2,650 1/min
Limiting speed
nϑr
1,900 1/min
Reference speed
≈m
22.666 kg
Weight
Mounting dimensions
da min
174 mm
Minimum diameter shaft shoulder
Da max
276 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
