FAG 22236-E1-XL

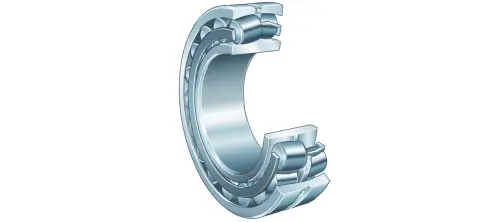

Spherical roller bearings 222..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
320 mm
Outside diameter
B
86 mm
Width
Cr
1,360,000 N
Basic dynamic load rating, radial
C0r
1,680,000 N
Basic static load rating, radial
Cur
153,000 N
Fatigue load limit, radial
CG
2,470 1/min
Limiting speed
nϑr
1,670 1/min
Reference speed
≈m
28.649 kg
Weight
Mounting dimensions
da min
197 mm
Minimum diameter shaft shoulder
Da max
303 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
