FAG 22256-BEA-XL-K-MB1
Spherical roller bearing 222..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

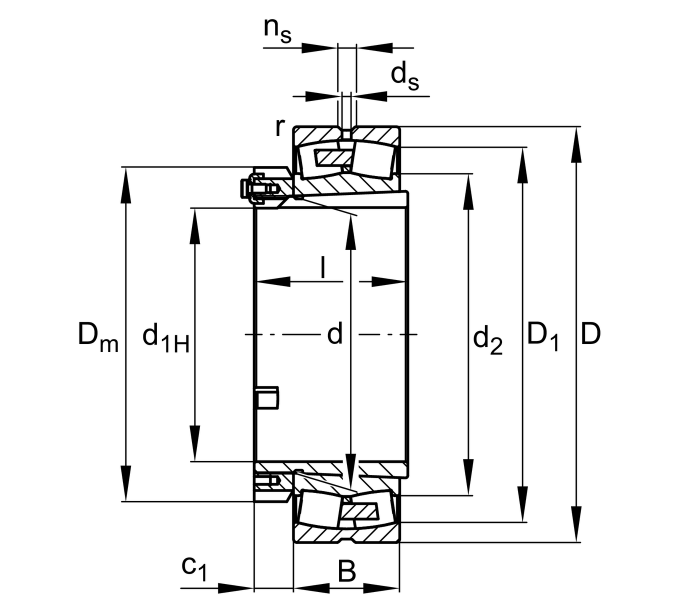

Main Dimensions & Performance Data
d
280 mm
Bore diameter
D
500 mm
Outside diameter
B
130 mm
Width
Cr
2,750,000 N
Basic dynamic load rating, radial
C0r
3,700,000 N
Basic static load rating, radial
Cur
320,000 N
Fatigue load limit, radial
CG
1,650 1/min
Limiting speed
nϑr
990 1/min
Reference speed
≈m
106.18 kg
Weight
Mounting dimensions
da min
300 mm
Minimum diameter shaft shoulder
Da max
480 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
da max
324 mm
Maximum diameter of shaft shoulder
db min
296 mm
Minimum cavity diameter of the sleeve
Ba min
28 mm
Minimum cavity width of the sleeve
