FAG 22260-BEA-XL-K-MB1
Spherical roller bearing 222..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

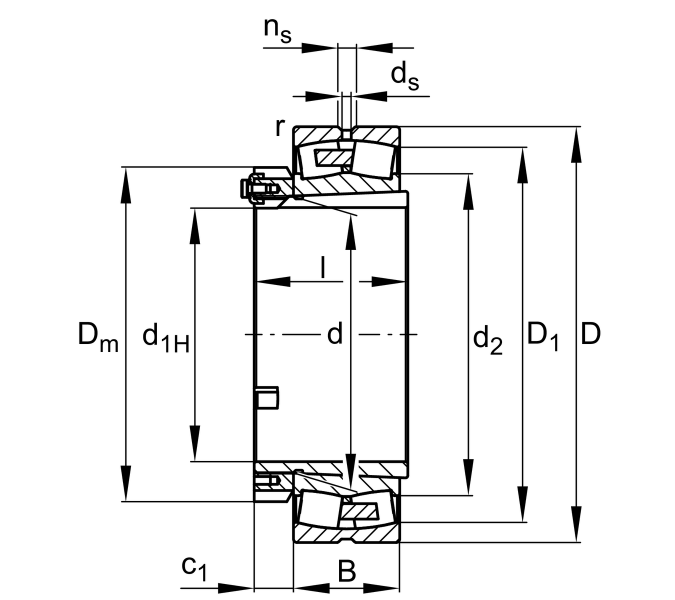

Main Dimensions & Performance Data
d
300 mm
Bore diameter
D
540 mm
Outside diameter
B
140 mm
Width
Cr
3,100,000 N
Basic dynamic load rating, radial
C0r
4,250,000 N
Basic static load rating, radial
Cur
360,000 N
Fatigue load limit, radial
CG
1,500 1/min
Limiting speed
nϑr
900 1/min
Reference speed
≈m
135.2 kg
Weight
Mounting dimensions
da min
320 mm
Minimum diameter shaft shoulder
Da max
520 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
da max
352 mm
Maximum diameter of shaft shoulder
db min
318 mm
Minimum cavity diameter of the sleeve
Ba min
32 mm
Minimum cavity width of the sleeve
