FAG 22264-BEA-XL-K-MB1

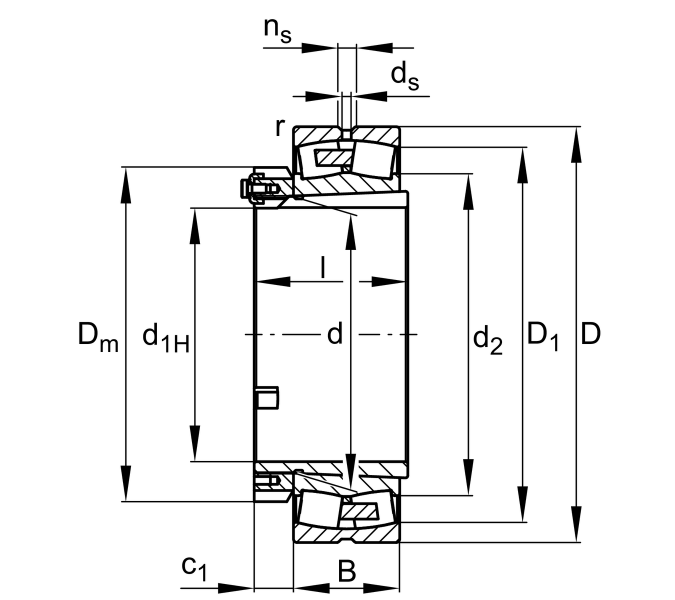

Spherical roller bearing 222..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
320 mm
Bore diameter
D
580 mm
Outside diameter
B
150 mm
Width
Cr
3,550,000 N
Basic dynamic load rating, radial
C0r
4,700,000 N
Basic static load rating, radial
Cur
405,000 N
Fatigue load limit, radial
CG
1,410 1/min
Limiting speed
nϑr
850 1/min
Reference speed
≈m
166.5 kg
Weight
Mounting dimensions
da min
340 mm
Minimum diameter shaft shoulder
Da max
560 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
da max
378 mm
Maximum diameter of shaft shoulder
db min
338 mm
Minimum cavity diameter of the sleeve
Ba min
39 mm
Minimum cavity width of the sleeve
