FAG 22272-BEA-XL-MB1
Spherical roller bearing 222..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

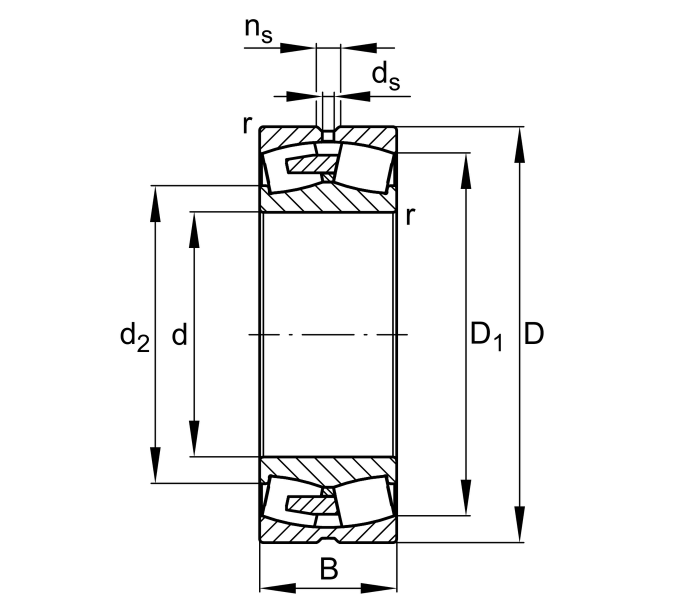

Main Dimensions & Performance Data
d
360 mm
Bore diameter
D
650 mm
Outside diameter
B
170 mm
Width
Cr
4,450,000 N
Basic dynamic load rating, radial
C0r
6,200,000 N
Basic static load rating, radial
Cur
500,000 N
Fatigue load limit, radial
CG
1,190 1/min
Limiting speed
nϑr
710 1/min
Reference speed
≈m
246.5 kg
Weight
Mounting dimensions
da min
386 mm
Minimum diameter shaft shoulder
Da max
624 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
