FAG 222S.208
Spherical roller bearings 222S, split spherical roller bearings, with inch size bearing bore
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

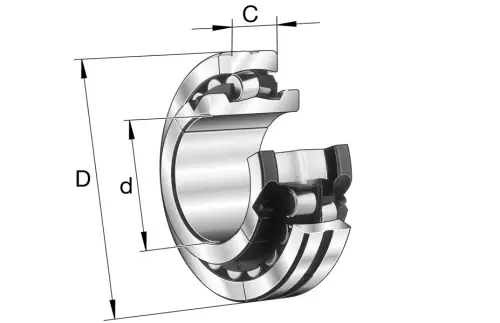

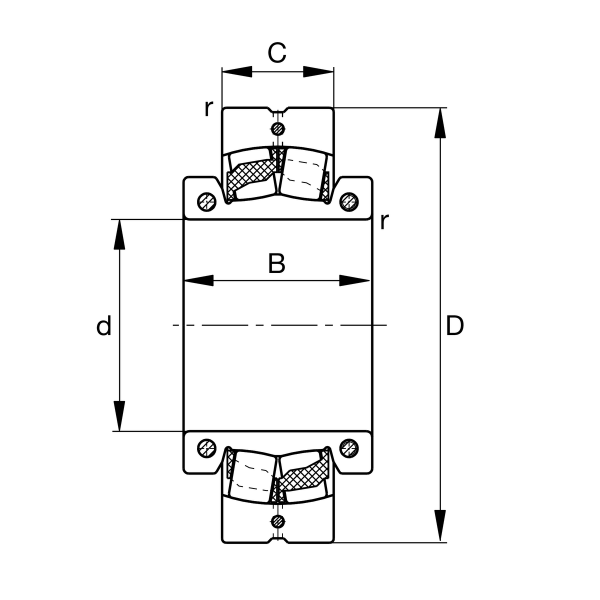

Main Dimensions & Performance Data
d
63.5 mm
Bore diameter
D
130 mm
Outside diameter
C
31 mm
Width, outer ring
Cr
172,000 N
Basic dynamic load rating, radial
C0r
210,000 N
Basic static load rating, radial
Cur
19,900 N
Fatigue load limit, radial
CG
2,440 1/min
Limiting speed
Fa max
5,400 N
Maximum axial load
≈m
2.8 kg
Weight
Mounting dimensions
Mi
9 Nm
Tightening torque clamping screw
Ma
4 Nm
Tightening torque clamping screw
