FAG 222S.308

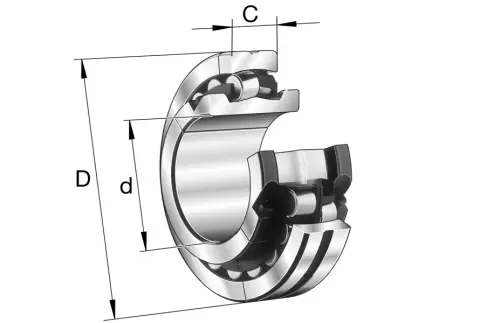

Spherical roller bearings 222S, split spherical roller bearings, with inch size bearing bore
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

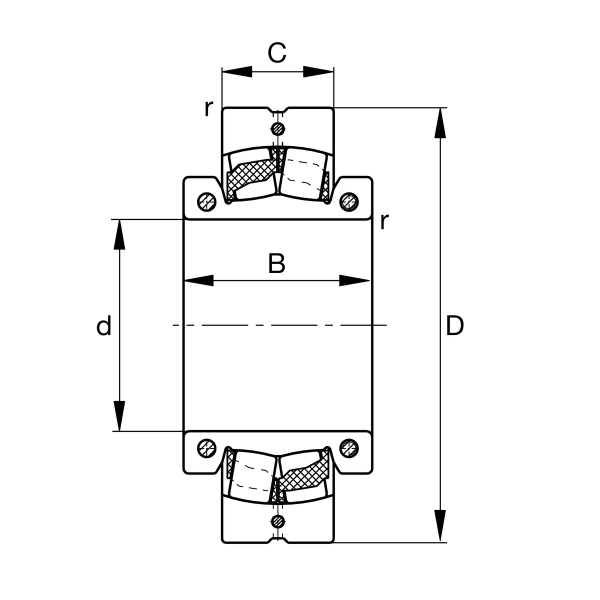

Main Dimensions & Performance Data
d
88.9 mm
Bore diameter
D
180 mm
Outside diameter
C
46 mm
Width, outer ring
Cr
285,000 N
Basic dynamic load rating, radial
C0r
360,000 N
Basic static load rating, radial
Cur
33,000 N
Fatigue load limit, radial
CG
1,820 1/min
Limiting speed
Fa max
7,600 N
Maximum axial load
≈m
6.5 kg
Weight
Mounting dimensions
Mi
14 Nm
Tightening torque clamping screw
Ma
14 Nm
Tightening torque clamping screw
