FAG 22308-E1-XL-K>A
Spherical roller bearings 223..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

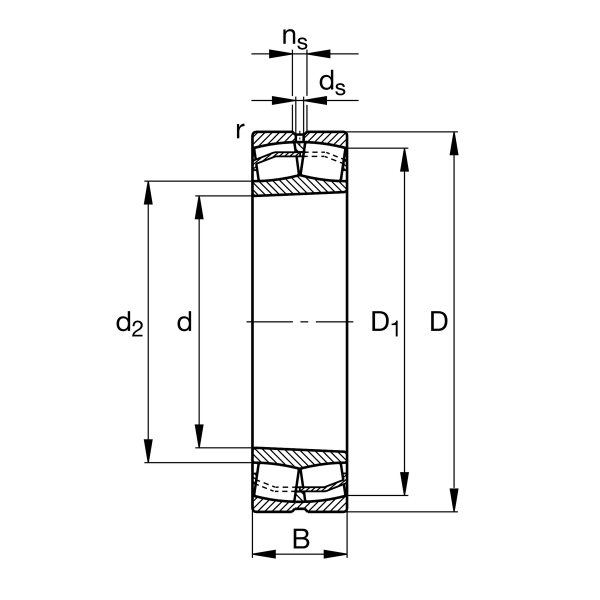

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
90 mm
Outside diameter
B
33 mm
Width
Cr
156,000 N
Basic dynamic load rating, radial
C0r
149,000 N
Basic static load rating, radial
Cur
13,500 N
Fatigue load limit, radial
CG
7,600 1/min
Limiting speed
nϑr
5,500 1/min
Reference speed
≈m
0.997 kg
Weight
Mounting dimensions
da min
49 mm
Minimum diameter shaft shoulder
da max
52 mm
Maximum diameter of shaft shoulder
Da max
81 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
db min
45 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
