FAG 22310-E1-XL-K-C4
Spherical roller bearings 223..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

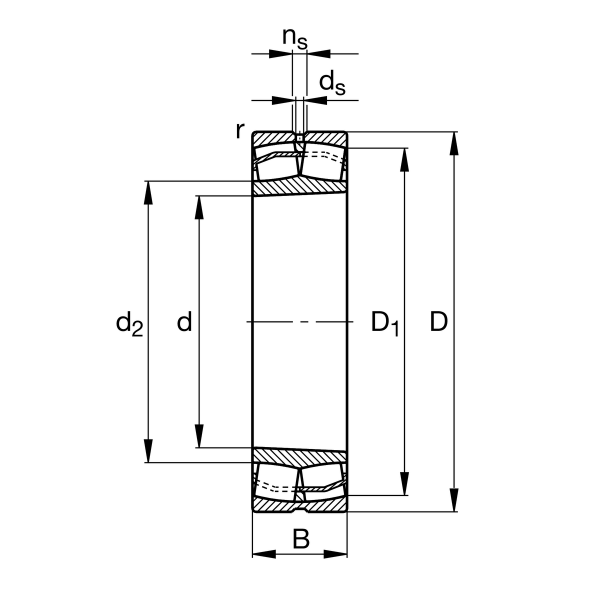

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
40 mm
Width
Cr
229,000 N
Basic dynamic load rating, radial
C0r
223,000 N
Basic static load rating, radial
Cur
20,700 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
4,800 1/min
Reference speed
≈m
1.801 kg
Weight
Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
da max
63 mm
Maximum diameter of shaft shoulder
Da max
99 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
db min
56 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
