FAG 22310-E1-XL-T41A
Spherical roller bearing 223..-E1-XL-T41A, symmetric with cage guidance ring
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

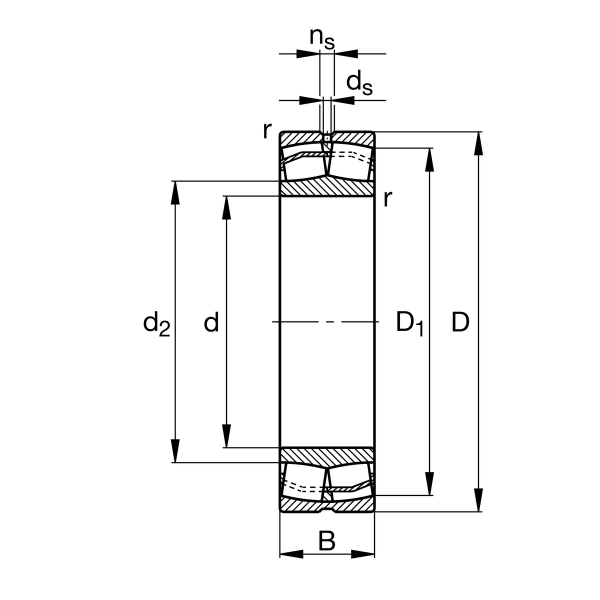

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
40 mm
Width
Cr
229,000 N
Basic dynamic load rating, radial
C0r
223,000 N
Basic static load rating, radial
Cur
20,700 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
4,800 1/min
Reference speed
≈m
1.867 kg
Weight
Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
Da max
99 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
