FAG 22310-E1A-XL-K-M-C3
Spherical roller bearing 223..-E1A-XL-K-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

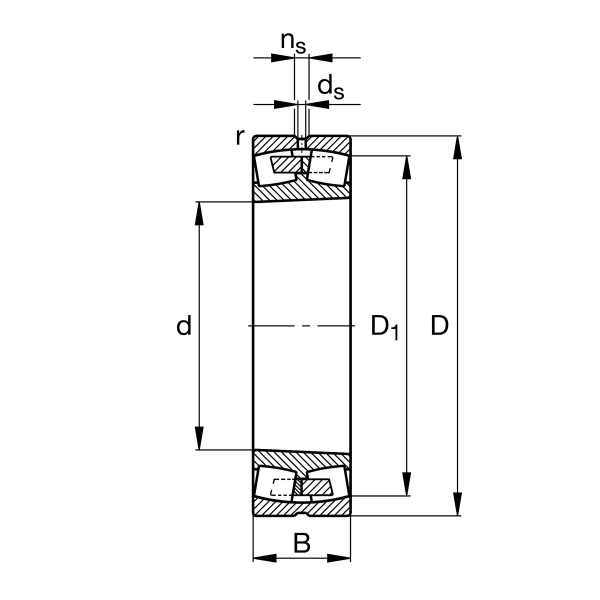

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
40 mm
Width
Cr
229,000 N
Basic dynamic load rating, radial
C0r
223,000 N
Basic static load rating, radial
Cur
20,700 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
4,800 1/min
Reference speed
≈m
1.8 kg
Weight

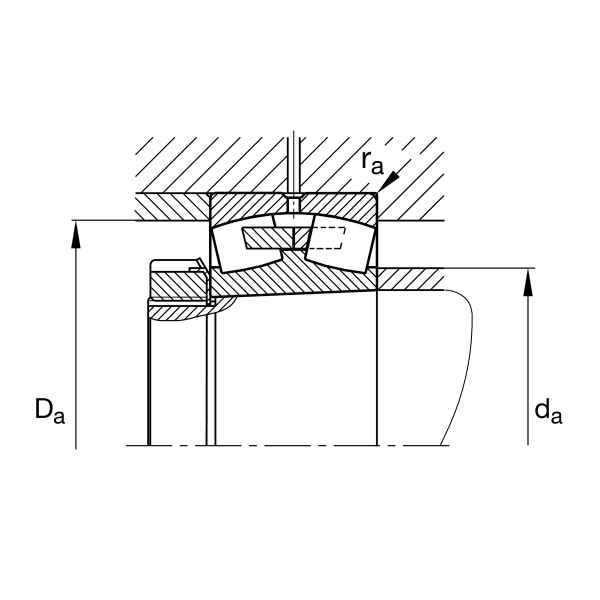

Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
Da max
99 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
da max
63 mm
Maximum diameter of shaft shoulder
db min
56 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
