FAG 22312-E1A-XL-MA-T41A
Spherical roller bearing 223..-E1A-XL-MA-T41A, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

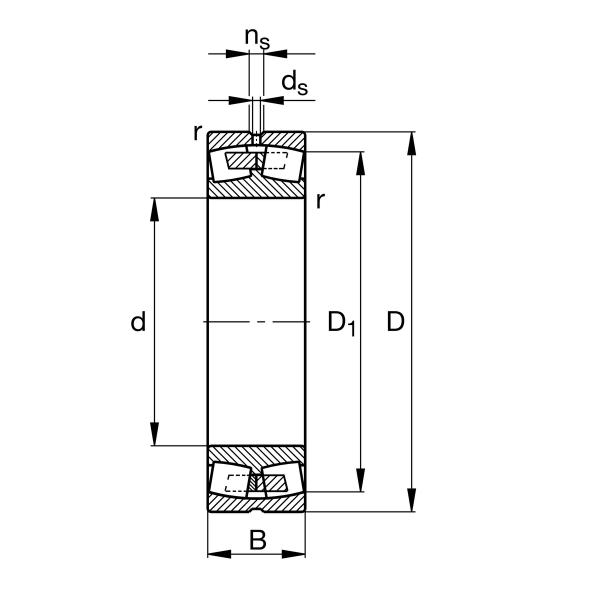

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
130 mm
Outside diameter
B
46 mm
Width
Cr
310,000 N
Basic dynamic load rating, radial
C0r
310,000 N
Basic static load rating, radial
Cur
29,000 N
Fatigue load limit, radial
CG
5,400 1/min
Limiting speed
nϑr
4,200 1/min
Reference speed
≈m
3.019 kg
Weight
Mounting dimensions
da min
72 mm
Minimum diameter shaft shoulder
Da max
118 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
