FAG 22314-E1A-XL-K-M
Spherical roller bearing 223..-E1A-XL-K-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

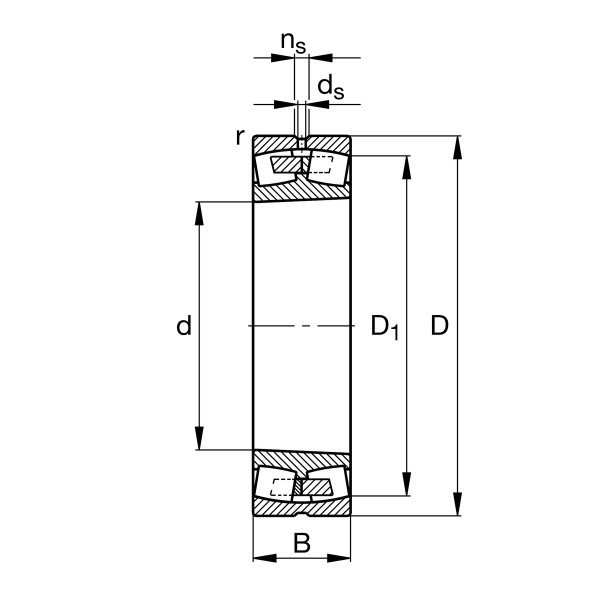

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
150 mm
Outside diameter
B
51 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
390,000 N
Basic static load rating, radial
Cur
37,500 N
Fatigue load limit, radial
CG
4,800 1/min
Limiting speed
nϑr
3,700 1/min
Reference speed
≈m
4.178 kg
Weight

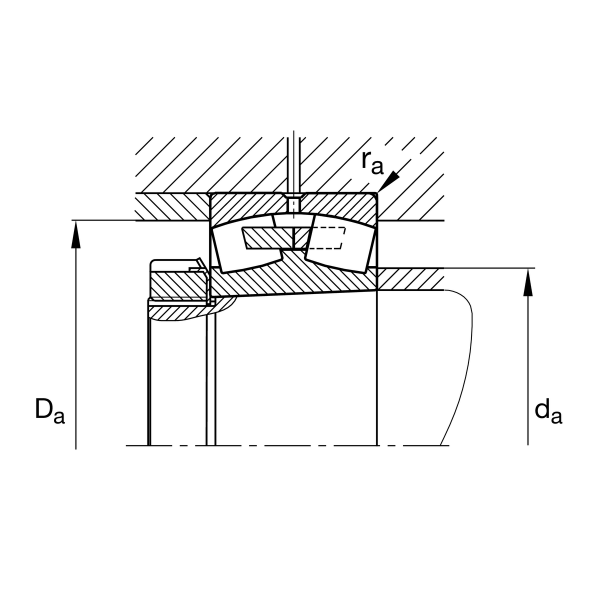

Mounting dimensions
da min
82 mm
Minimum diameter shaft shoulder
Da max
138 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
da max
86 mm
Maximum diameter of shaft shoulder
db min
77 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
