FAG 22315-E1-XL-K-C3
Spherical roller bearings 223..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

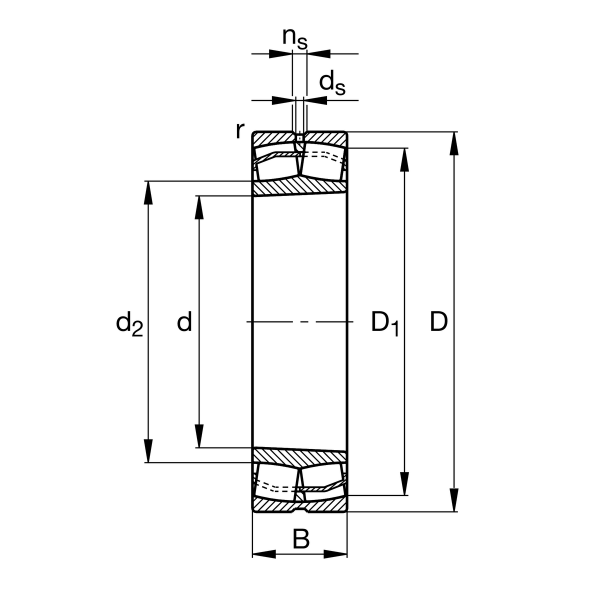

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
160 mm
Outside diameter
B
55 mm
Width
Cr
445,000 N
Basic dynamic load rating, radial
C0r
450,000 N
Basic static load rating, radial
Cur
42,000 N
Fatigue load limit, radial
CG
4,500 1/min
Limiting speed
nϑr
3,550 1/min
Reference speed
≈m
5.144 kg
Weight
Mounting dimensions
da min
87 mm
Minimum diameter shaft shoulder
da max
92 mm
Maximum diameter of shaft shoulder
Da max
148 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
db min
82 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
