FAG 22315-E1A-XL-M-T41A
Spherical roller bearing 223..-E1A-XL-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

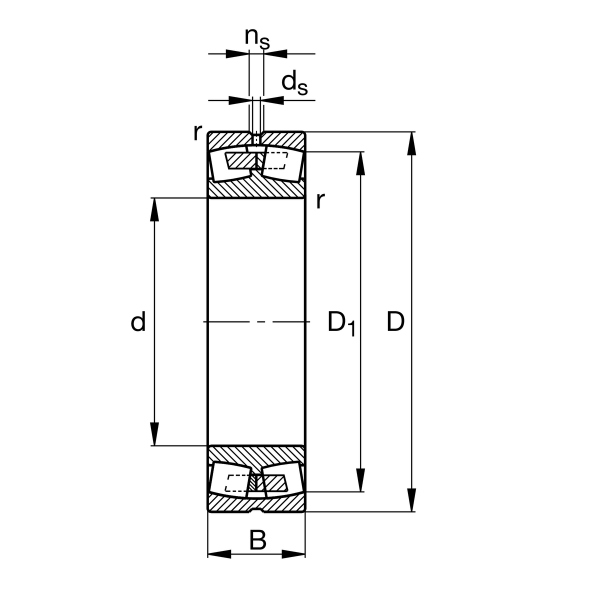

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
160 mm
Outside diameter
B
55 mm
Width
Cr
445,000 N
Basic dynamic load rating, radial
C0r
450,000 N
Basic static load rating, radial
Cur
41,500 N
Fatigue load limit, radial
CG
4,500 1/min
Limiting speed
nϑr
3,550 1/min
Reference speed
≈m
5.226 kg
Weight
Mounting dimensions
da min
87 mm
Minimum diameter shaft shoulder
Da max
148 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
