FAG 22316-E1A-XL-K-M-C4

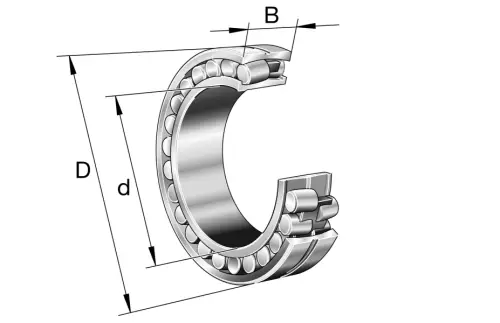

Spherical roller bearing 223..-E1A-XL-K-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

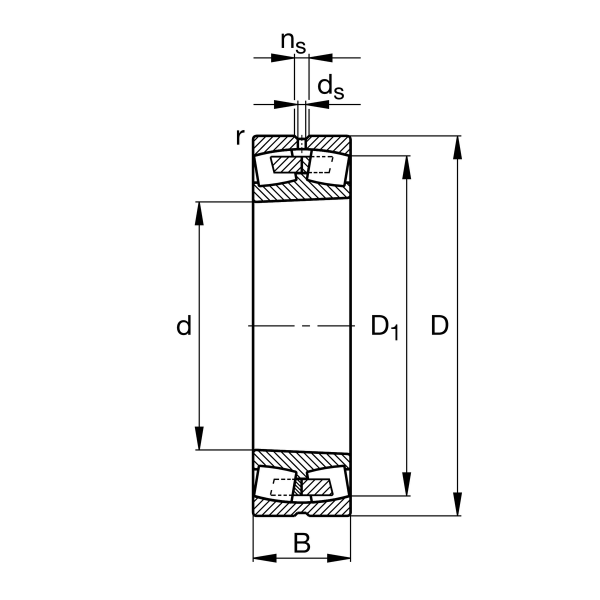

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
170 mm
Outside diameter
B
58 mm
Width
Cr
495,000 N
Basic dynamic load rating, radial
C0r
510,000 N
Basic static load rating, radial
Cur
46,500 N
Fatigue load limit, radial
CG
4,250 1/min
Limiting speed
nϑr
3,400 1/min
Reference speed
≈m
6.098 kg
Weight

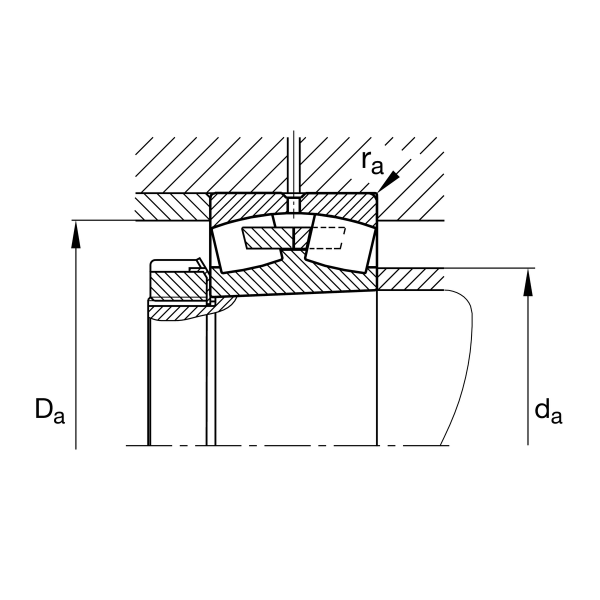

Mounting dimensions
da min
92 mm
Minimum diameter shaft shoulder
Da max
158 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
da max
98 mm
Maximum diameter of shaft shoulder
db min
88 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
