FAG 22317-E1A-XL-K-M-C3
Spherical roller bearing 223..-E1A-XL-K-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

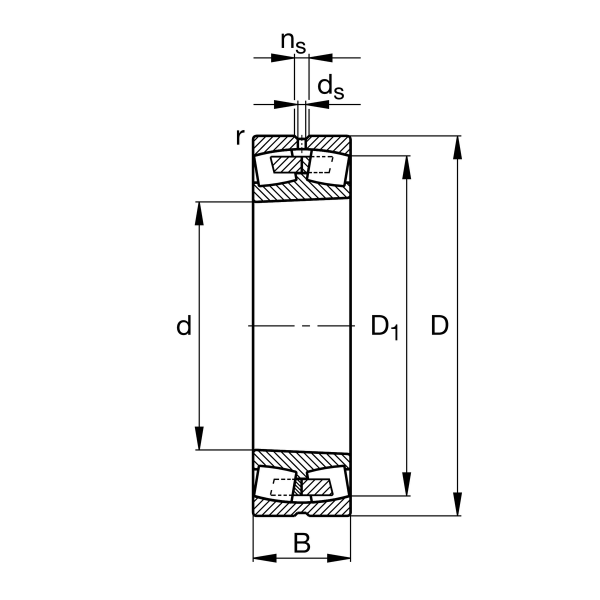

Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
180 mm
Outside diameter
B
60 mm
Width
Cr
540,000 N
Basic dynamic load rating, radial
C0r
560,000 N
Basic static load rating, radial
Cur
51,000 N
Fatigue load limit, radial
CG
4,100 1/min
Limiting speed
nϑr
3,200 1/min
Reference speed
≈m
7.001 kg
Weight

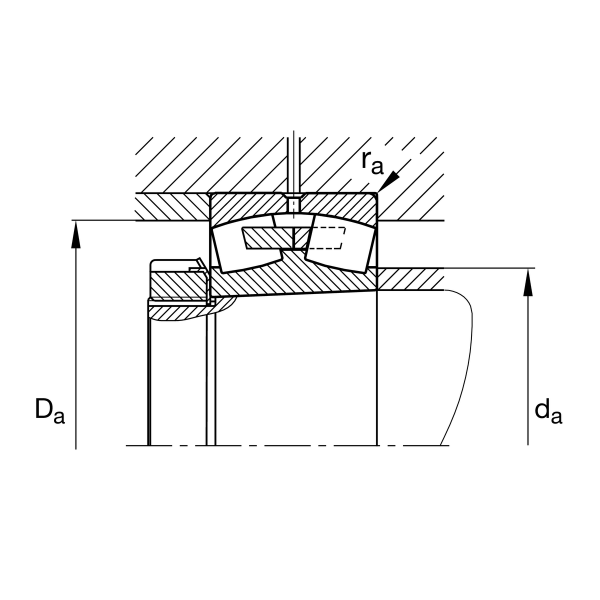

Mounting dimensions
da min
99 mm
Minimum diameter shaft shoulder
Da max
166 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
da max
104 mm
Maximum diameter of shaft shoulder
db min
94 mm
Minimum cavity diameter of the sleeve
Ba min
6 mm
Minimum cavity width of the sleeve
