FAG 22318-E1-XL-K-C4
Spherical roller bearings 223..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

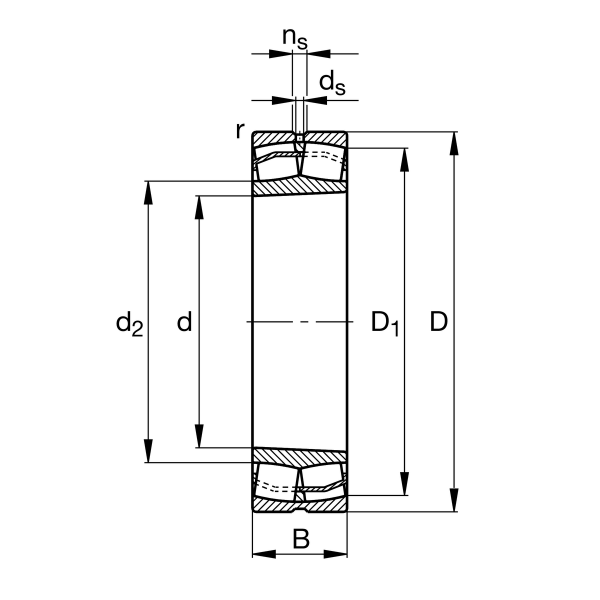

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
190 mm
Outside diameter
B
64 mm
Width
Cr
610,000 N
Basic dynamic load rating, radial
C0r
630,000 N
Basic static load rating, radial
Cur
56,000 N
Fatigue load limit, radial
CG
3,850 1/min
Limiting speed
nϑr
3,000 1/min
Reference speed
≈m
7.9 kg
Weight
Mounting dimensions
da min
104 mm
Minimum diameter shaft shoulder
da max
110 mm
Maximum diameter of shaft shoulder
Da max
176 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
db min
100 mm
Minimum cavity diameter of the sleeve
Ba min
6 mm
Minimum cavity width of the sleeve
