FAG 22319-E1A-XL-K-M
Spherical roller bearing 223..-E1A-XL-K-M, symmetric 2 outer ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

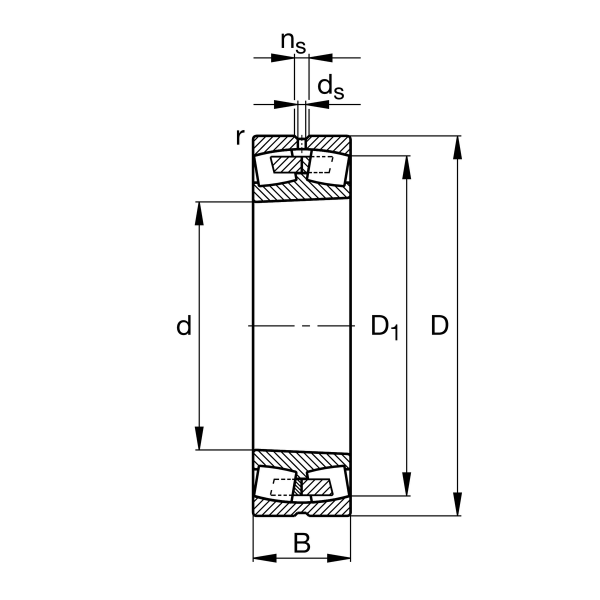

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
67 mm
Width
Cr
670,000 N
Basic dynamic load rating, radial
C0r
700,000 N
Basic static load rating, radial
Cur
61,000 N
Fatigue load limit, radial
CG
3,700 1/min
Limiting speed
nϑr
2,800 1/min
Reference speed
≈m
9.77 kg
Weight
Mounting dimensions
da min
109 mm
Minimum diameter shaft shoulder
Da max
186 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
da max
115 mm
Maximum diameter of shaft shoulder
db min
105 mm
Minimum cavity diameter of the sleeve
Ba min
7 mm
Minimum cavity width of the sleeve
