FAG 22324-E1-XL
Spherical roller bearings 223..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

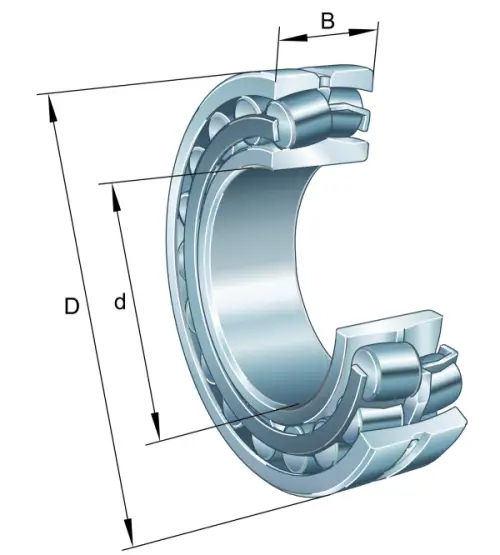

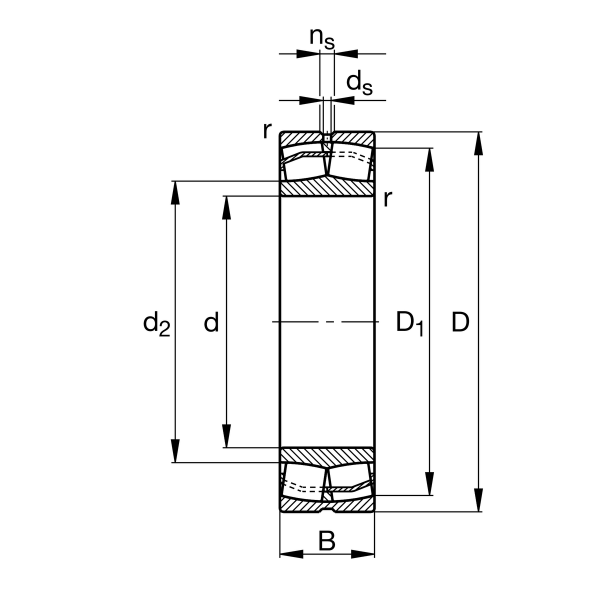

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
260 mm
Outside diameter
B
86 mm
Width
Cr
1,080,000 N
Basic dynamic load rating, radial
C0r
1,170,000 N
Basic static load rating, radial
Cur
105,000 N
Fatigue load limit, radial
CG
2,850 1/min
Limiting speed
nϑr
2,000 1/min
Reference speed
≈m
22.135 kg
Weight

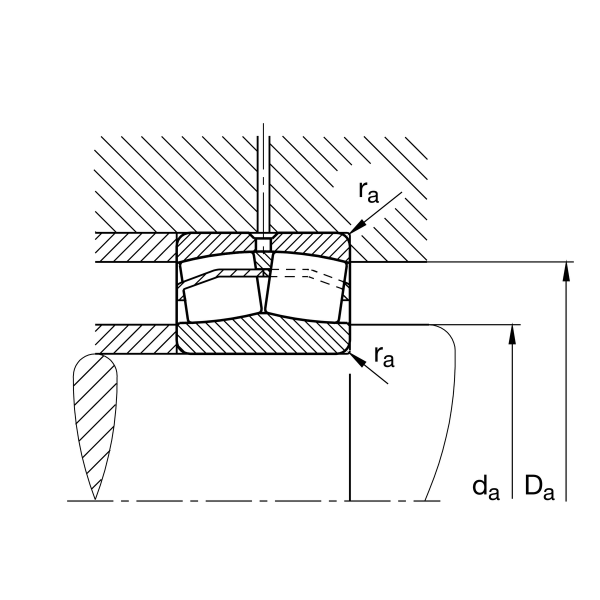

Mounting dimensions
da min
134 mm
Minimum diameter shaft shoulder
Da max
246 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
