FAG 230/670-B-K-MB-C3
Spherical Roller Bearings

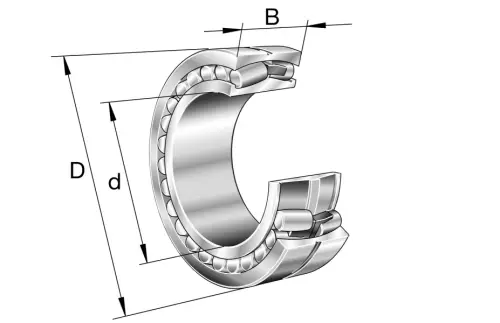

Spherical roller bearing 230..-B-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

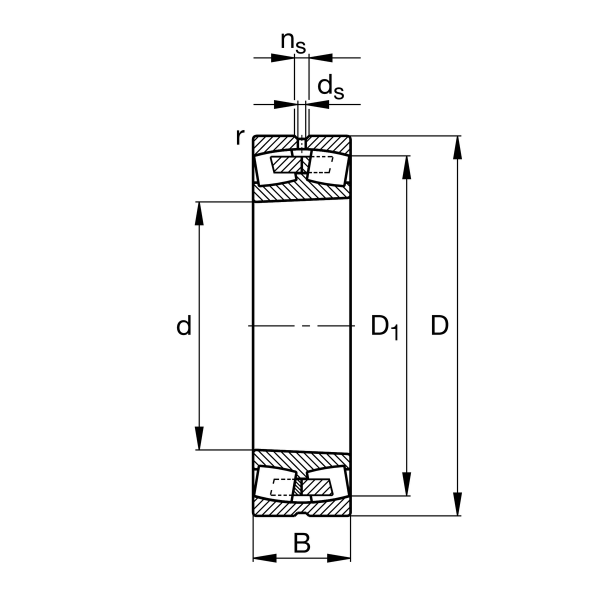

Main Dimensions & Performance Data
d
670 mm
Bore diameter
D
980 mm
Outside diameter
B
230 mm
Width
Cr
7,200,000 N
Basic dynamic load rating, radial
C0r
15,800,000 N
Basic static load rating, radial
Cur
1,120,000 N
Fatigue load limit, radial
CG
630 1/min
Limiting speed
nϑr
350 1/min
Reference speed
≈m
590 kg
Weight

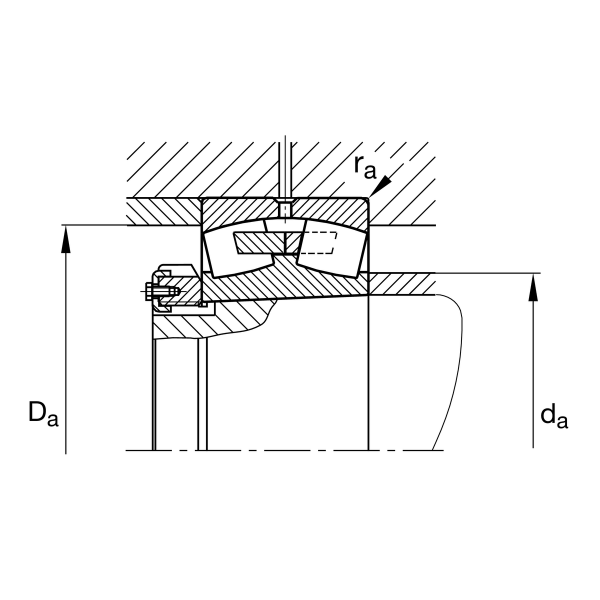

Mounting dimensions
da min
698 mm
Minimum diameter shaft shoulder
Da max
952 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
da max
741 mm
Maximum diameter of shaft shoulder
db min
694 mm
Minimum cavity diameter of the sleeve
Ba min
20 mm
Minimum cavity width of the sleeve
