FAG 230/800-K-MB
Spherical roller bearing 230..-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

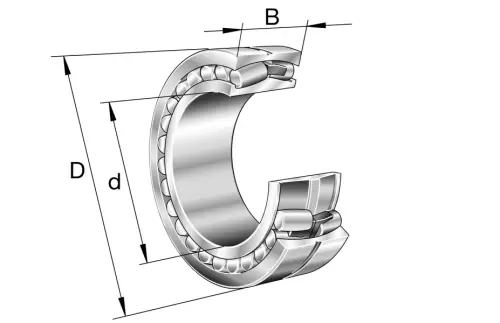

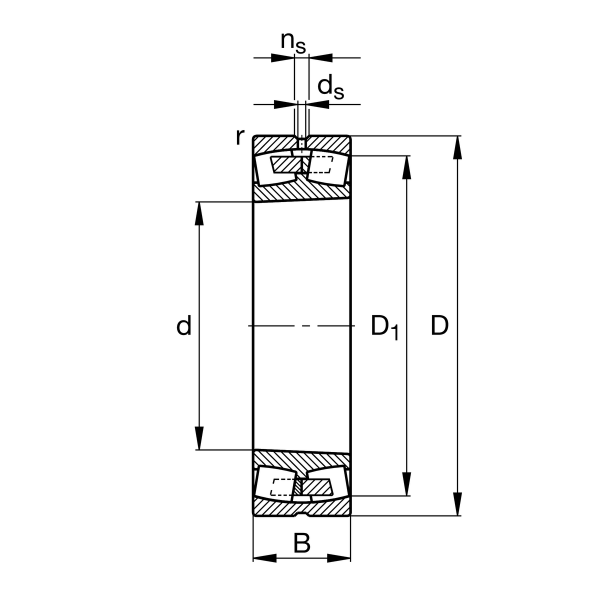

Main Dimensions & Performance Data
d
800 mm
Bore diameter
D
1,150 mm
Outside diameter
B
258 mm
Width
Cr
9,300,000 N
Basic dynamic load rating, radial
C0r
21,200,000 N
Basic static load rating, radial
Cur
1,450,000 N
Fatigue load limit, radial
CG
530 1/min
Limiting speed
nϑr
280 1/min
Reference speed
≈m
875.6 kg
Weight

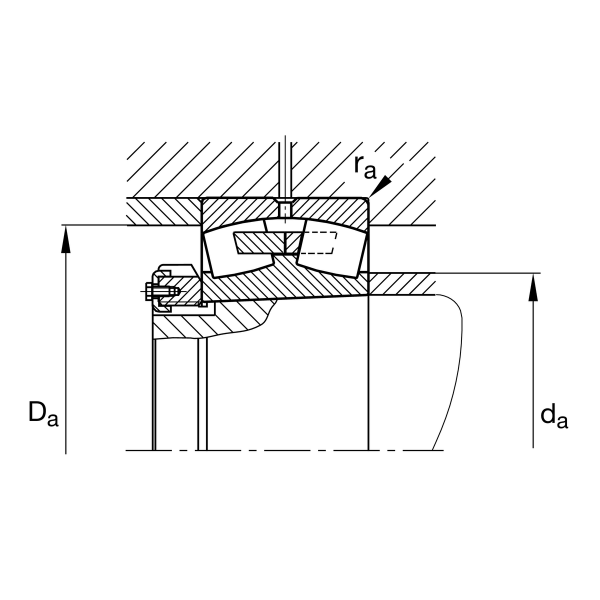

Mounting dimensions
da min
828 mm
Minimum diameter shaft shoulder
Da max
1,122 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
da max
879 mm
Maximum diameter of shaft shoulder
db min
828 mm
Minimum cavity diameter of the sleeve
Ba min
25 mm
Minimum cavity width of the sleeve
