FAG 23052-BE-XL
Spherical roller bearings 230..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

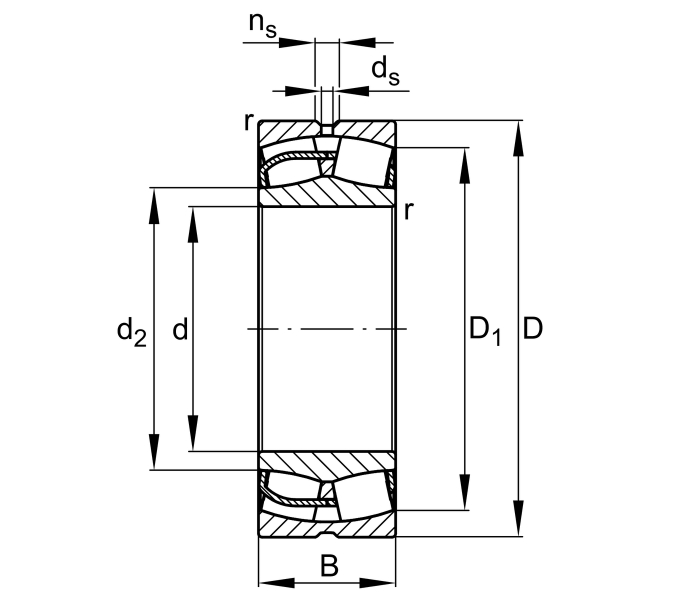

Main Dimensions & Performance Data
d
260 mm
Bore diameter
D
400 mm
Outside diameter
B
104 mm
Width
Cr
1,670,000 N
Basic dynamic load rating, radial
C0r
2,600,000 N
Basic static load rating, radial
Cur
239,000 N
Fatigue load limit, radial
CG
1,850 1/min
Limiting speed
nϑr
1,170 1/min
Reference speed
≈m
46.605 kg
Weight
Mounting dimensions
da min
274.6 mm
Minimum diameter shaft shoulder
Da max
385.4 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
