FAG 23064-BEA-XL-K-MB1-C3
Spherical roller bearing 230..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
320 mm
Bore diameter
D
480 mm
Outside diameter
B
121 mm
Width
Cr
2,300,000 N
Basic dynamic load rating, radial
C0r
3,750,000 N
Basic static load rating, radial
Cur
330,000 N
Fatigue load limit, radial
CG
1,480 1/min
Limiting speed
nϑr
920 1/min
Reference speed
≈m
73.265 kg
Weight

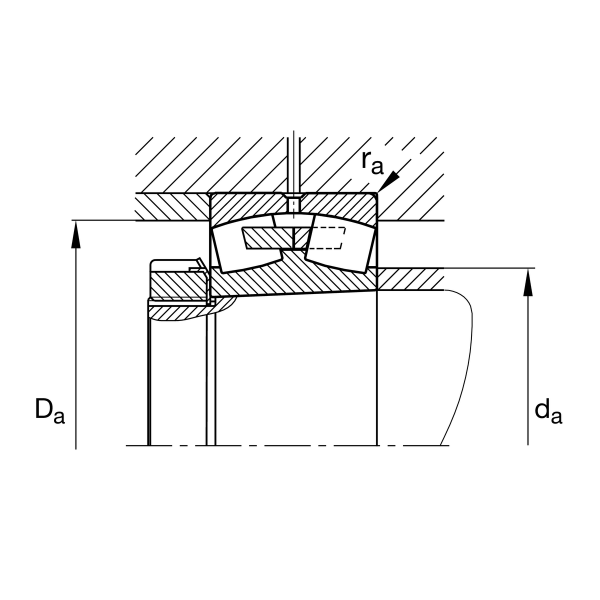

Mounting dimensions
da min
334.6 mm
Minimum diameter shaft shoulder
Da max
465.4 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
da max
357 mm
Maximum diameter of shaft shoulder
db min
334 mm
Minimum cavity diameter of the sleeve
Ba min
13 mm
Minimum cavity width of the sleeve
