FAG 23084-BEA-XL-K-MB1-C3
Spherical roller bearing 230..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
420 mm
Bore diameter
D
620 mm
Outside diameter
B
150 mm
Width
Cr
3,650,000 N
Basic dynamic load rating, radial
C0r
6,300,000 N
Basic static load rating, radial
Cur
520,000 N
Fatigue load limit, radial
CG
1,090 1/min
Limiting speed
nϑr
650 1/min
Reference speed
≈m
148.5 kg
Weight

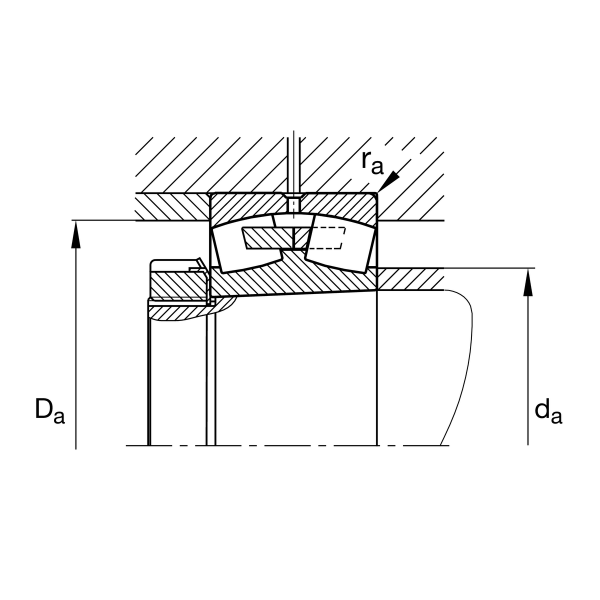

Mounting dimensions
da min
438 mm
Minimum diameter shaft shoulder
Da max
602 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
da max
468 mm
Maximum diameter of shaft shoulder
db min
437 mm
Minimum cavity diameter of the sleeve
Ba min
16 mm
Minimum cavity width of the sleeve
