FAG 23088-BEA-XL-K-MB1
Spherical roller bearing 230..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
440 mm
Bore diameter
D
650 mm
Outside diameter
B
157 mm
Width
Cr
3,950,000 N
Basic dynamic load rating, radial
C0r
6,900,000 N
Basic static load rating, radial
Cur
560,000 N
Fatigue load limit, radial
CG
1,030 1/min
Limiting speed
nϑr
610 1/min
Reference speed
≈m
171 kg
Weight

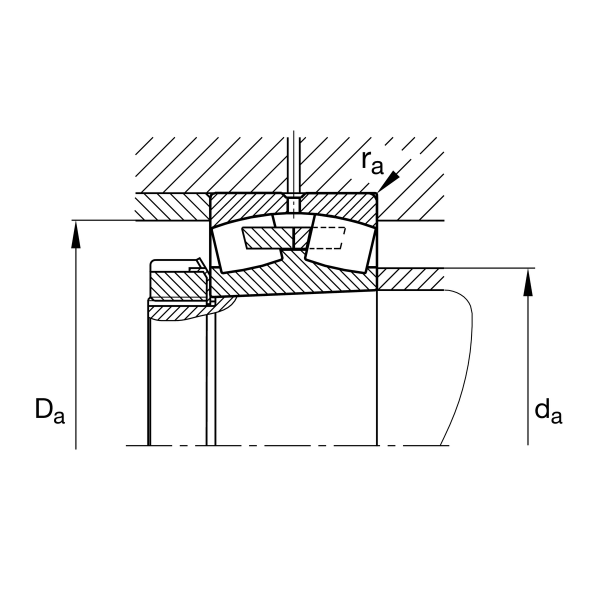

Mounting dimensions
da min
463 mm
Minimum diameter shaft shoulder
Da max
627 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
da max
488 mm
Maximum diameter of shaft shoulder
db min
458 mm
Minimum cavity diameter of the sleeve
Ba min
17 mm
Minimum cavity width of the sleeve
