FAG 231/500-BEA-XL-MB1
Spherical roller bearing 231..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
500 mm
Bore diameter
D
830 mm
Outside diameter
B
264 mm
Width
Cr
8,300,000 N
Basic dynamic load rating, radial
C0r
13,900,000 N
Basic static load rating, radial
Cur
890,000 N
Fatigue load limit, radial
CG
690 1/min
Limiting speed
nϑr
350 1/min
Reference speed
≈m
576.5 kg
Weight

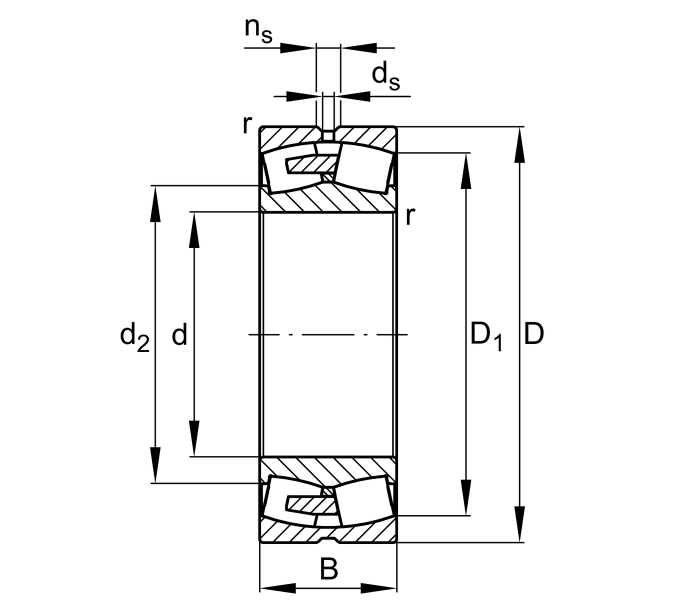

Mounting dimensions
da min
532 mm
Minimum diameter shaft shoulder
Da max
798 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
