FAG 231/530-BEA-XL-MB1
Spherical roller bearing 231..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

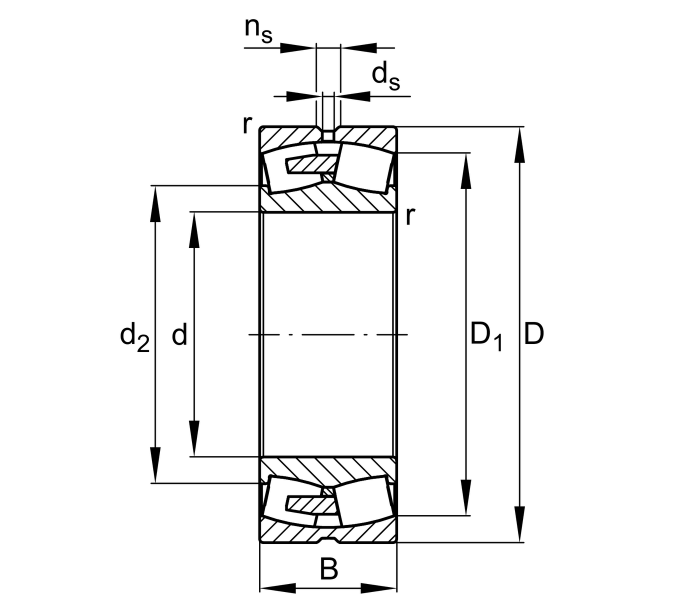

Main Dimensions & Performance Data
d
530 mm
Bore diameter
D
870 mm
Outside diameter
B
272 mm
Width
Cr
8,900,000 N
Basic dynamic load rating, radial
C0r
15,000,000 N
Basic static load rating, radial
Cur
960,000 N
Fatigue load limit, radial
CG
660 1/min
Limiting speed
nϑr
325 1/min
Reference speed
≈m
639 kg
Weight
Mounting dimensions
da min
562 mm
Minimum diameter shaft shoulder
Da max
838 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
