FAG 231/560-BEA-XL-MB1

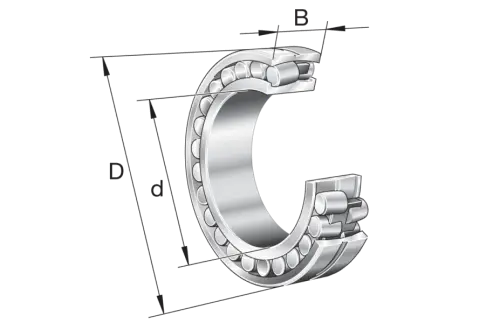

Spherical roller bearing 231..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

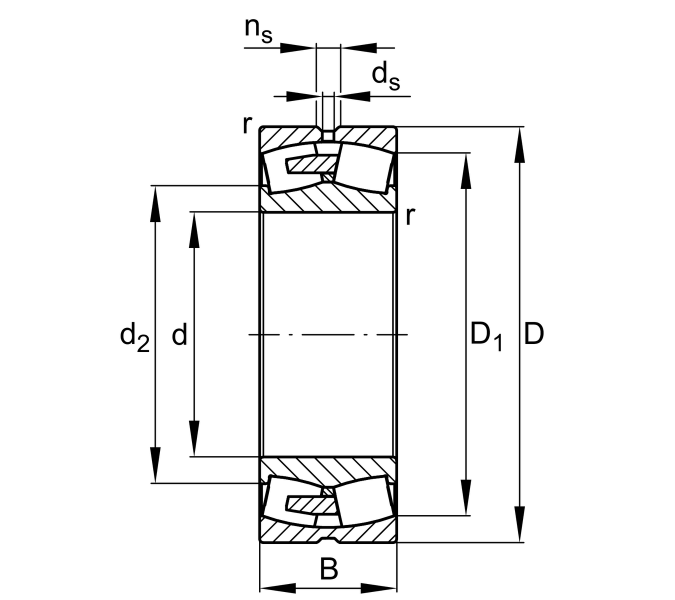

Main Dimensions & Performance Data
d
560 mm
Bore diameter
D
920 mm
Outside diameter
B
280 mm
Width
Cr
9,700,000 N
Basic dynamic load rating, radial
C0r
16,400,000 N
Basic static load rating, radial
Cur
1,060,000 N
Fatigue load limit, radial
CG
630 1/min
Limiting speed
nϑr
300 1/min
Reference speed
≈m
738 kg
Weight
Mounting dimensions
da min
592 mm
Minimum diameter shaft shoulder
Da max
888 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
