FAG 231/670-B-K-MB-C3
Spherical Roller Bearings
Spherical roller bearing 231..-B-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

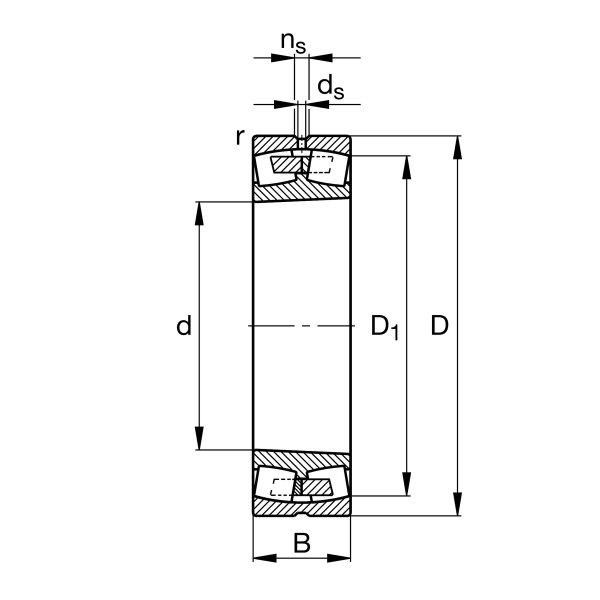

Main Dimensions & Performance Data
d
670 mm
Bore diameter
D
1,090 mm
Outside diameter
B
336 mm
Width
Cr
11,000,000 N
Basic dynamic load rating, radial
C0r
23,900,000 N
Basic static load rating, radial
Cur
1,600,000 N
Fatigue load limit, radial
CG
495 1/min
Limiting speed
nϑr
230 1/min
Reference speed
≈m
1,283 kg
Weight

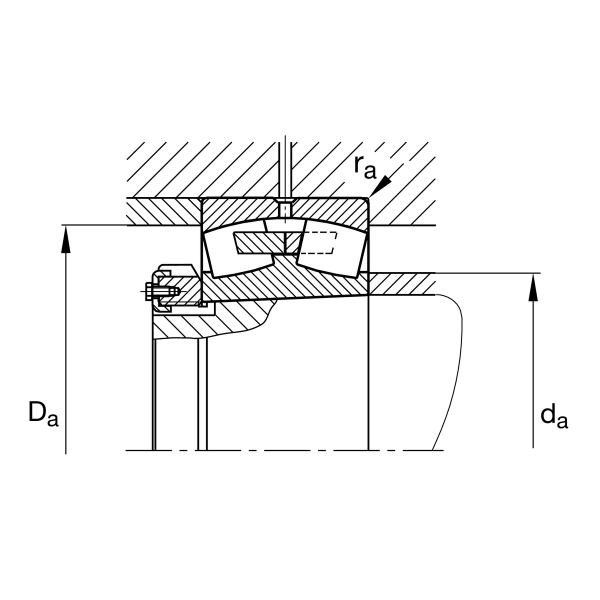

Mounting dimensions
da min
702 mm
Minimum diameter shaft shoulder
Da max
1,058 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
