FAG 231/710-B-K-MB
Spherical Roller Bearings

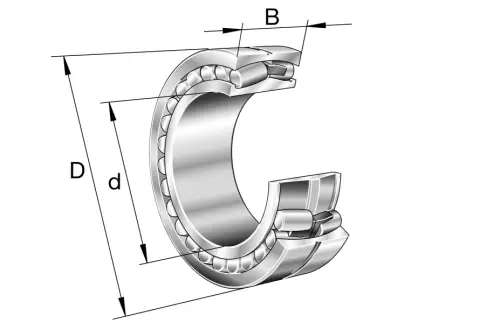

Spherical roller bearing 231..-B-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

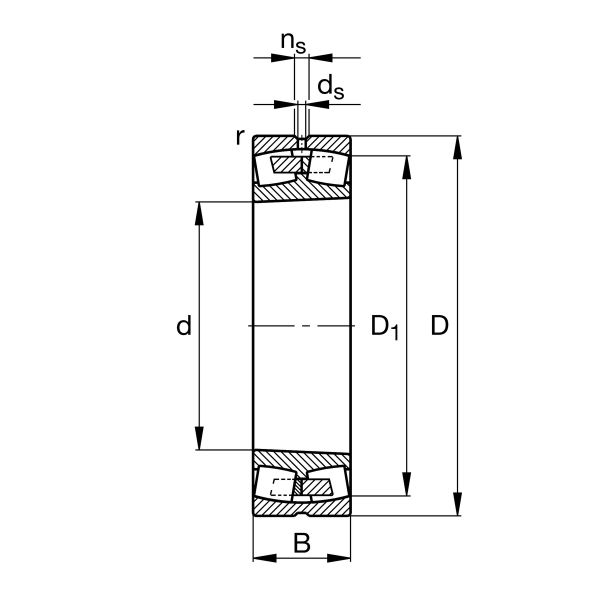

Main Dimensions & Performance Data
d
710 mm
Bore diameter
D
1,150 mm
Outside diameter
B
345 mm
Width
Cr
12,500,000 N
Basic dynamic load rating, radial
C0r
27,000,000 N
Basic static load rating, radial
Cur
1,830,000 N
Fatigue load limit, radial
CG
470 1/min
Limiting speed
nϑr
207 1/min
Reference speed
≈m
1,410 kg
Weight

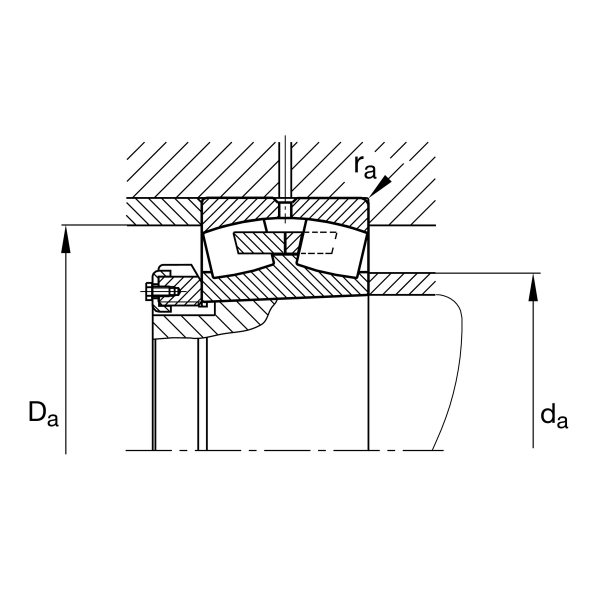

Mounting dimensions
da min
750 mm
Minimum diameter shaft shoulder
Da max
1,110 mm
Maximum diameter of housing shoulder
ra max
8 mm
Maximum recess radius
